How to use Lercenker

Lercenker APP QR Code

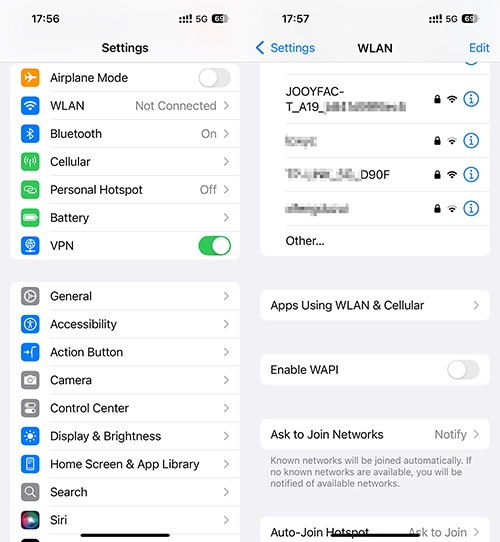

Power on the dash cam and enable its Wi-Fi functionality.

Access the Settings menu, navigate to Wi-Fi/Wireless Network settings, and select the desired network.

Locate the SSID “JOOYFACT_A19_” in the list of available networks.Select the network by clicking on it.

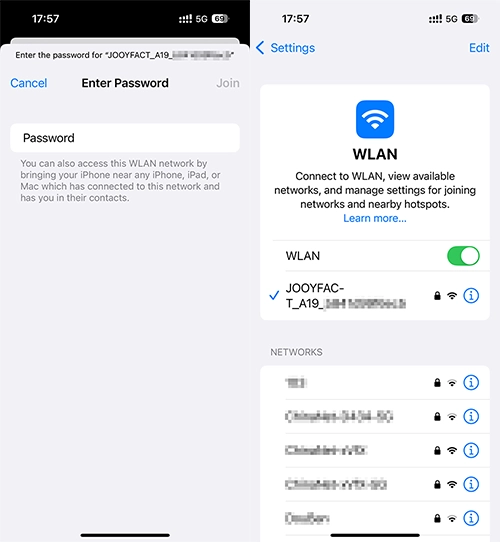

Enter the password “12345678” in the authentication field.Tap the “Join” button to establish a connection between your smartphone and the dash cam.

If connection fails, verify the password matches the camera’s settings and restart both devices.

Your phone has successfully connected to the dash cam.

Lercenker Wi-Fi
Lercenker WIFI 2

Network Connectivity Clarification

The dash cam’s Wi-Fi is exclusively designed for App connectivity and does not provide internet access—this is standard functionality.

  1. Android Devices:
    • Most Android phones disable mobile data when connected to the camera’s Wi-Fi.
    • Action: Disconnect from the camera’s Wi-Fi to restore cellular internet access.
  1. iOS Devices:
    • iPhones allow simultaneous usage of Wi-Fi (for camera functions) and cellular data (for internet browsing).
    • Benefit: Maintain internet connectivity while operating the dash cam.

When setting up your dashcam for the first time:

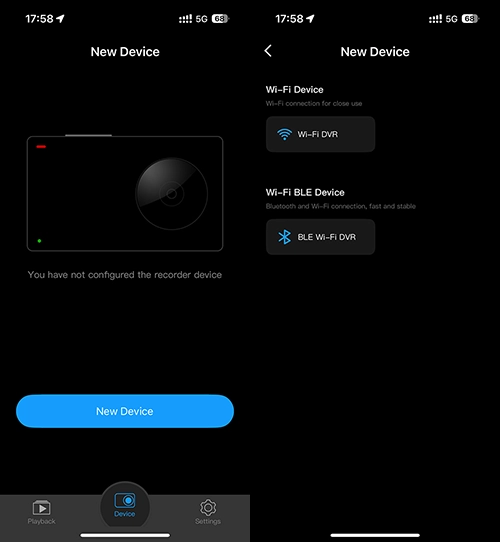

  1. Open the Lercenker app.You will see the main screen—please click the blue “New Device” icon to begin connecting your dashcam.
  2. For the JOOYFACT A19 model, select “Wi-Fi DVR” to establish the connection.
  3. Once connected, restart the Lercenker app, and you will be able to view your dashcam feed.
Lercenker Connect with the dash cam
Lercenker Settings APP 2
Lercenker APP Settings 3
Lercenker APP Settings 3

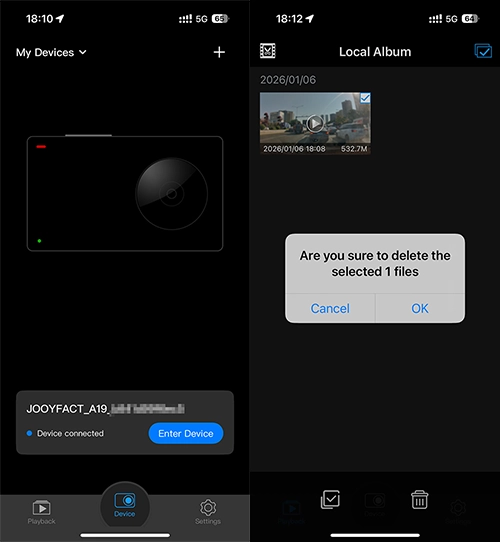

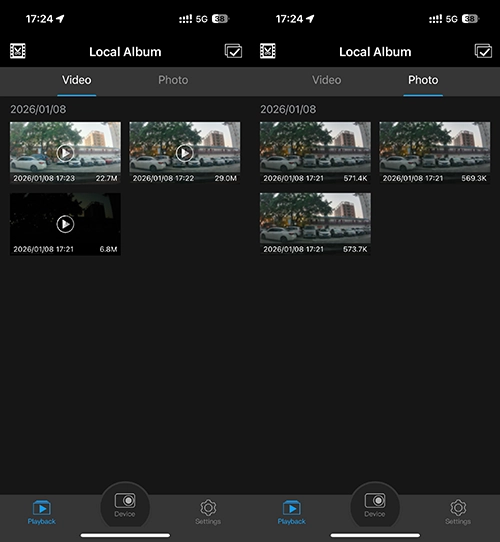

Playback: If you have downloaded the videos or photos to your phone, you can find the files in the “Playback” section. Videorefers to the video files, and Photomeans the photos. You can click a video to replay it.

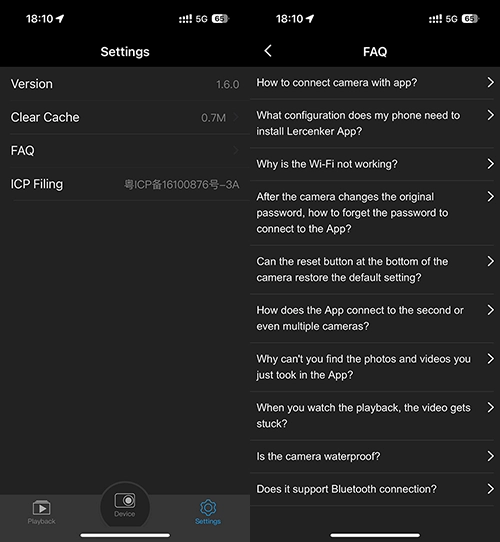

Settings: You can find information and FAQs about the app.

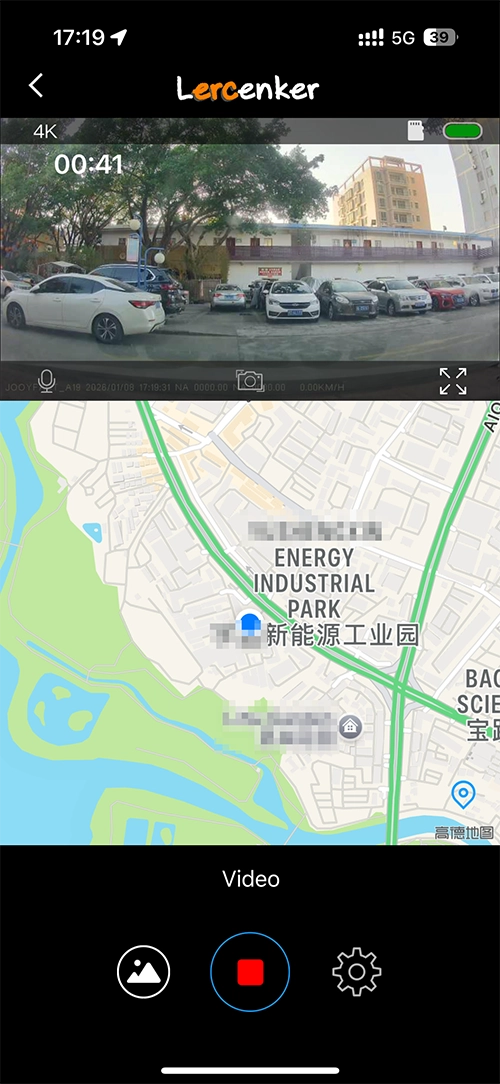

The A19 with GPS antenna is recording .

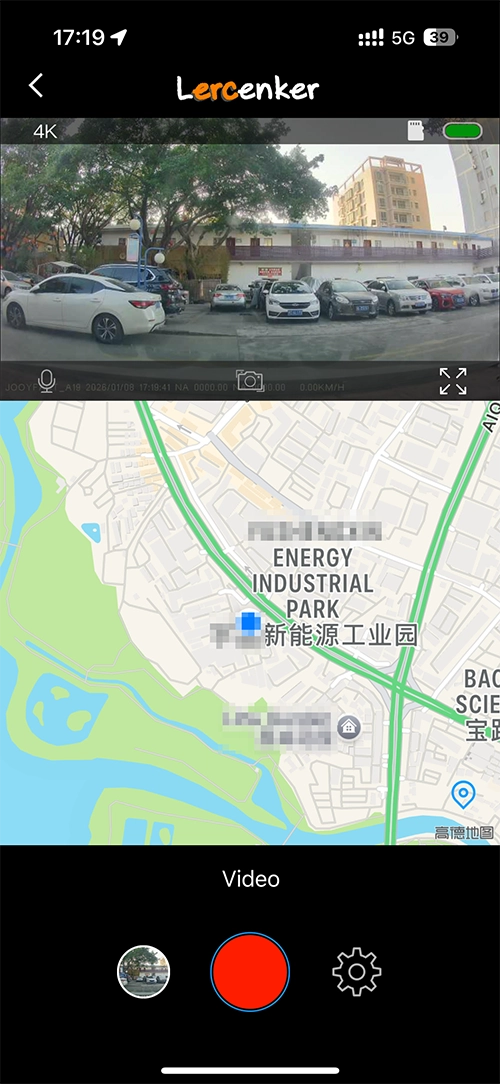

Recording via the A19 with GPS antenna has been manually halted.

JOOYFACT A19 GPS version recording
JOOYFACT A19 GPS version recording paused

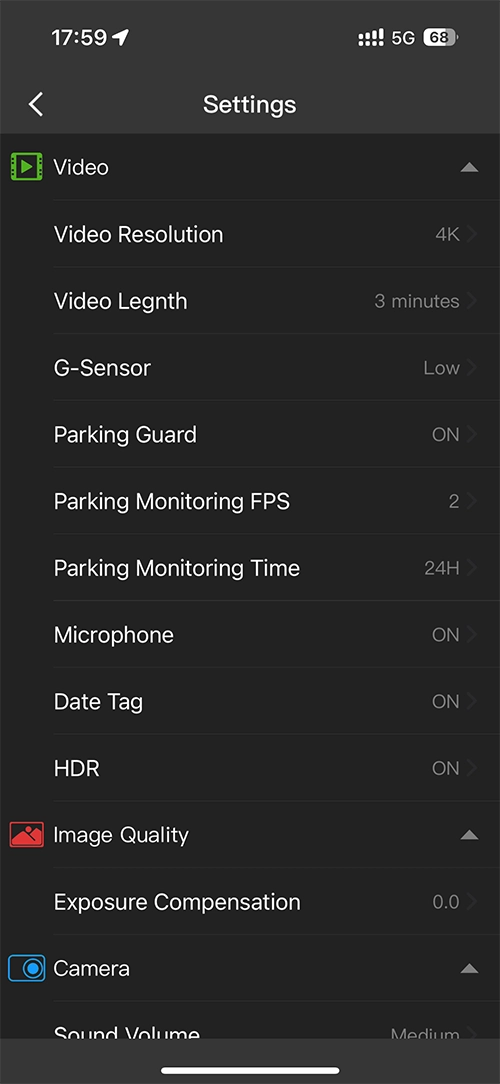

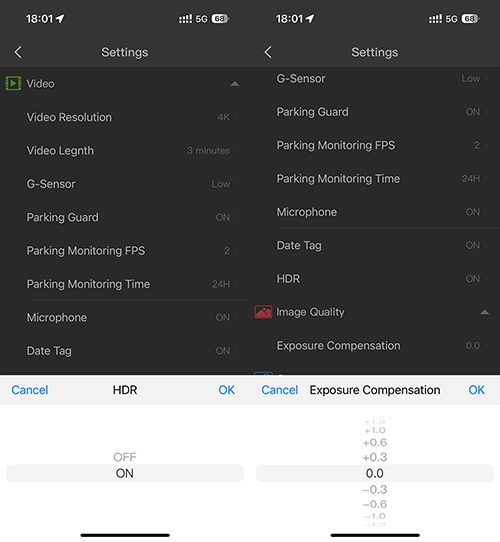

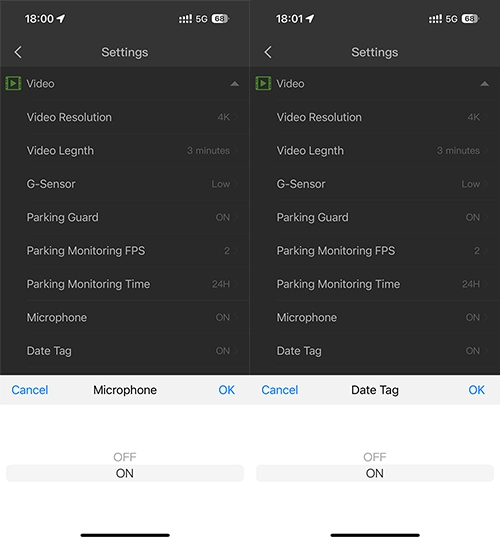

Camera Settings

Video resolution depends on the dashcam model and its supported options. For the JOOYFACT_A19, we recommend setting it to 4K or 2K.

Video Length : Configure the duration for each video file, we recomend you set 1 minute or 3 minutes .

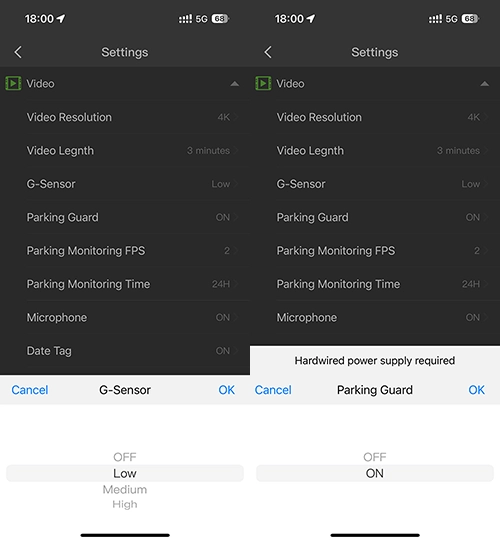

G-sensor :Adjust the G-sensor sensitivity (Off/Low/Medium/High) and test each setting to identify the optimal configuration for your usage scenario.

Parking Guard :The function utilizes the fuse box power cable by default, but compatible models (e.g., VW, Audi) can also connect via dedicated cables. It just can capture what had happened in the view of the dash cam .The dashcam activates recording (30s/60s) when the G-sensor identifies a significant impact event, such as a collision or emergency braking. JOOYFACT_A19, we do not recommend you use this function, it need more than 13 seconds to start work.

Parking Monitoring FPS, You can set the time-lapse recording FPS (frames per second) to options such as 1/2/5 FPS. If you set it to 1 FPS, the video file size will be smaller than when set to 2/5 FPS—meaning, with the same TF card, it can record for a longer duration.

Parking Monitoring Time: You can set the time-lapse recording to OFF to disable the function. Alternatively, set it to a duration option (4H/8H/12H/24H)—we recommend 24H as it is sufficient for most buyers.

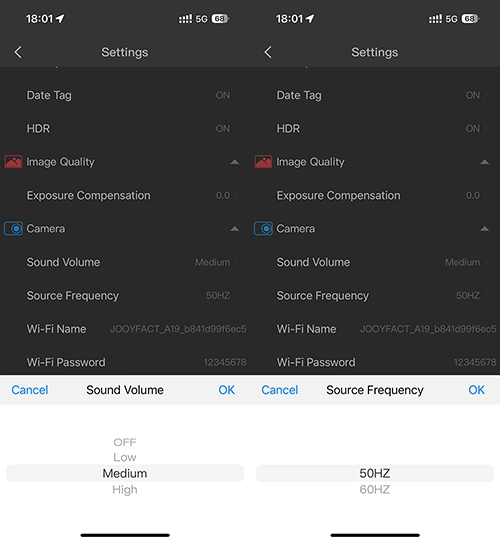

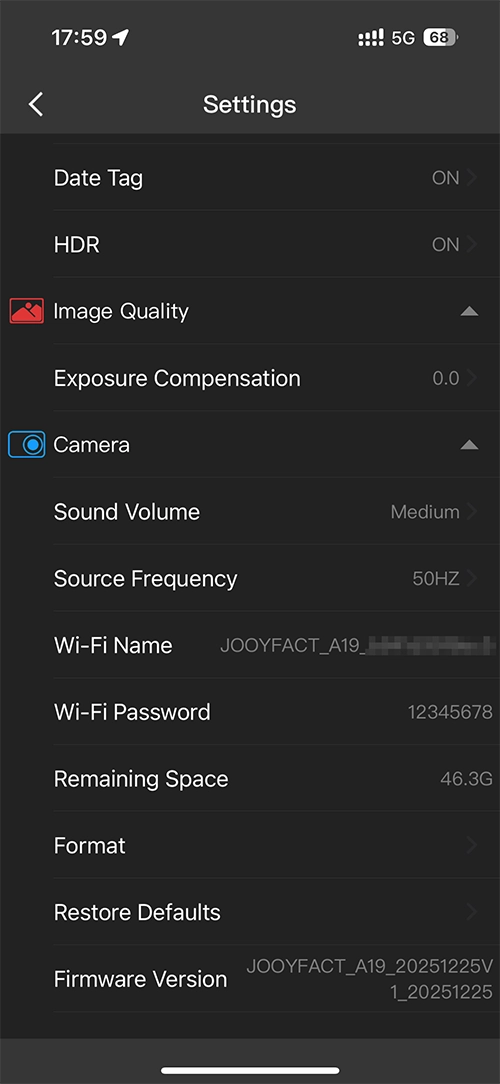

Sound Volume: If the dashcam has a built-in speaker, you can adjust its volume.

Sounrce Frequency :Set your dashcam’s frequency by prioritizing your regional power grid frequency. select the matching standard for your region:

  • 50Hz (PAL): For regions with 50Hz grids (China mainland, Europe, Australia). Choose 50HZ to avoid screen flickering or LED light flicker (e.g., streetlights, car lights), which disrupts footage clarity.
  • 60Hz (NTSC): For regions with 60Hz grids (U.S., Japan, South Korea, Canada). Select 60HZ here to prevent mismatched frequency issues.

Note: Mismatching frequency with your grid causes flickering/LED strobing, degrading viewing experience. Always align with local standards first.

Wi-Fi Name：Do not use this function to change our dash cam Wi-Fi name,please .If you require a new network name for your dashcam, submit a support request via email with your device details.

Wi-Fi Password:Do not use this function to change our dash cam password, please .

If you require a new password for your dashcam, submit a support request via email with your device details.

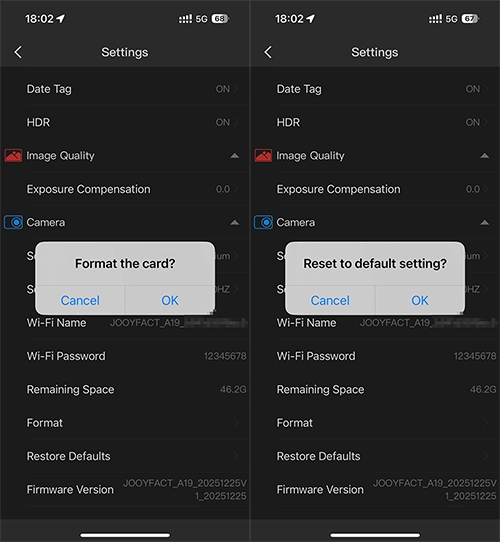

Format : Regularly formatting the memory card of the recorder can effectively prevent data loss. For normal use, the memory card should be formatted every 15-30 days.

Always back up important data before formatting, please.

Factory Reset

Click to Restore Factory Defaults.

Lercenker Setting 1
Lercenker Settings 2
Lercenker Settings 4
Lercenker Settings 5
Lercenker Settings 6
Lercenker Settings 7
Lercenker Settings 8
Lercenker Settings 9
Lercenker Settings 10

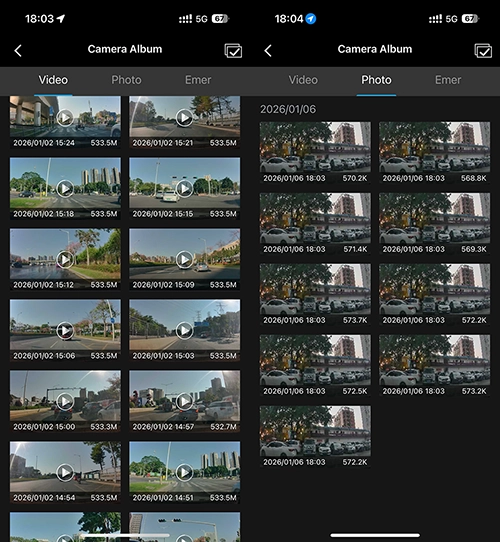

Lercenker Settings 11
Lercenker Settings 12
Lercenker Downloading

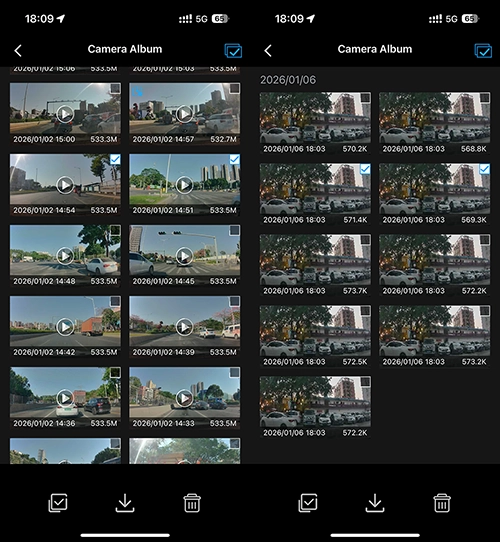

Select videos to download or delete.

The video file is being downloaded.

Video download paused. Resume to continue.

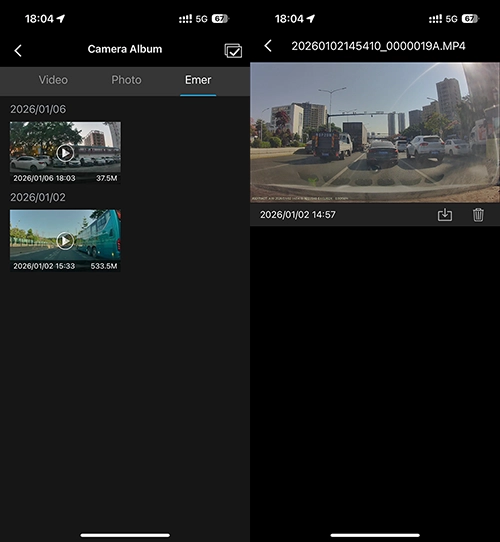

Album Functionality & File Organization

This album categorizes downloaded files into three distinct types:

  1. Video
    • Purpose: Stores video recordings for continuous overwrite (e.g., dash cam footage).
    • Behavior: Automatically replaces older files when storage reaches capacity.
  1. Photo
    • Purpose: Archives static media (e.g., screenshots, photos).
    • Behavior: Retained indefinitely unless manually deleted.
  1. Emer
    • Purpose: Secures critical recordings (e.g., collision evidence).
    • Behavior: Locked and protected from overwrite via G-sensor activation .

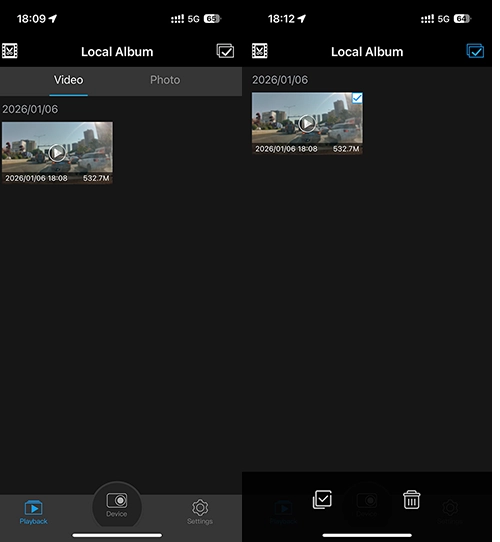

Lercenker Downloading 3

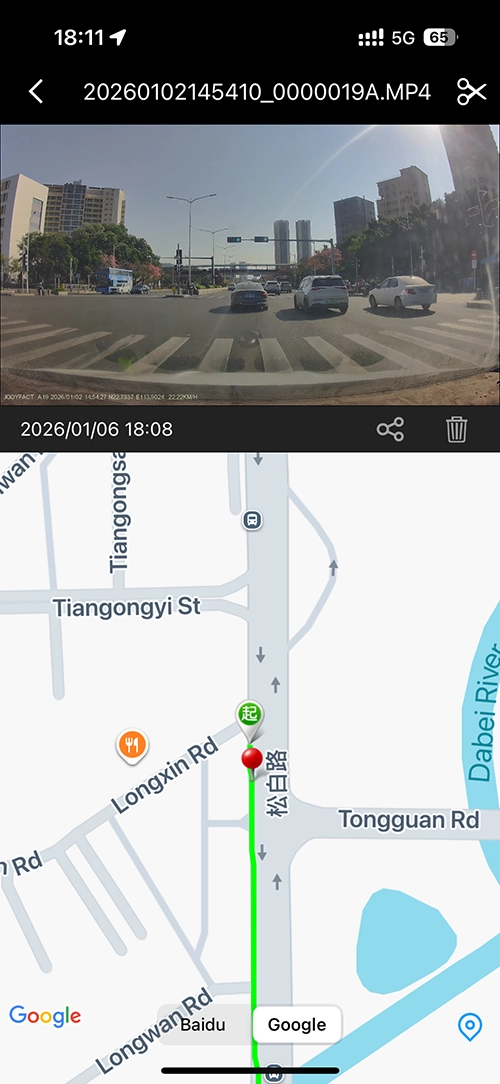

The GPS version of the video is recommended to be downloaded to your device for optimized replay performance.

Portrait mode playback

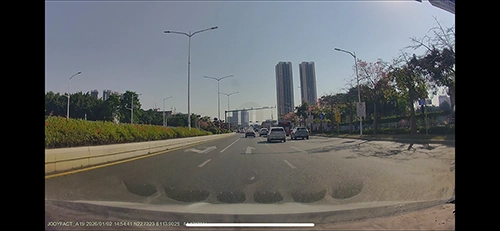

Landscape mode playback

Lercenker Replay 1
Lercenker Replay 2
